| TYPE | 170 series | |||
 |
 |
 |
 |
|

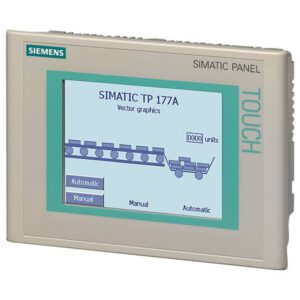

| TP 177A | TP 177B | TP 177B | OP 177B | |
| Display | STN liquid crystal display (LCD), 4 blue levels |
TFT widescreen display (LCD), 256 colors |
STN liquid crystal display (LCD), 4 blue levels or 256 colors |
STN liquid crystal display (LCD), 4 blue levels or 256 colors |
| Size (in inches) | 6″ Touch | 4″ Touch | 6″ Touch | 6″ Touch + Key |
| Resolution (W x H in pixels) | 320 x 240 | 480 x 272 | 320 x 240 | 320 x 240 |
| MTBF of backlight | 50,000 | 30,000 | 50,000 | 50,000 |
| Front dimensions (in mm) | 212 x 156 | 140 x 116 | 212 x 156 | 243 x 212.5 |
| Operator controls | Touch screen | Membrane keypad, touch screen |
Touch screen | Membrane keypad, touch screen |
| Memory | 512 KB | 2 MB | 2 MB | 2 MB |
| Serial / MPI / PROFIBUS DP | RS232 with adapter | RS232 with adapter | RS232 with adapter | RS232 with adapter |
| Slot for CF / Multi Media / Secure Digital Cards |
PN/DP version | PN/DP version | PN/DP version | PN/DP version |
| SIMATIC S7/SIMATIC WinAC | with SIMATIC S5/S7 | with SIMATIC S5/S7 | with SIMATIC S5/S7 | |
| Engineering software | WinCC Comfort V11, WinCC flexible Compact, Standard, Advanced or higher | |||
Tel : 02-990-1919
Mail: [email protected]

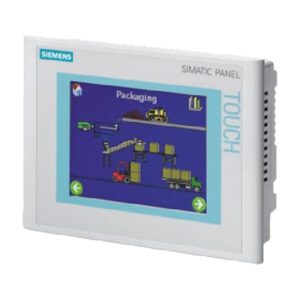

HMI SIEMENS OP/TP/MP Panels – 170 series
มีคนกำลังชมสินค้าชิ้นนี้เหมือนคุณอยู่ 19 คน

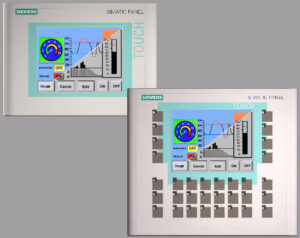

The Touch Panels and Operator Panels of the 170 series have proven themselves for operator control and monitoring of small applications.
The performance capability of the devices is scalable. These higher-quality devices have a retentive message buffer, and the color devices have a PROFINET/Ethernet interface in addition to the PROFIBUS interface.
