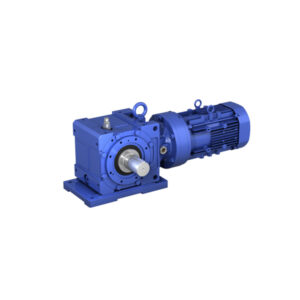

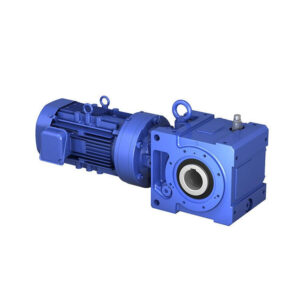

Robust, state-of-the-art, spiral bevel gearmotors.
- All-Steel Internal Components
- Highly Efficient
- Standard Ductile Iron Housing
- Integrated Cycloidal Technology
- Maintenance Free Options Available
Input | Integral gearmotor, quill and C-face adapter |
Output | Shrink Disc, Taper-Grip® Bushing, Solid Shaft, Keyed Hollow Bore, Screw Conveyor |
Mounting | Hollow Shaft, Foot, Flange, U-Face (direct surface mount) |
Sizes | 6 frame sizes (A-F), 48 to 1059 kg |
Ratios | 11 to 26,000 and greater |
Power Range | 1/8HP to 75HP (0.10kW to 55kW) |
Torque Capacity | Up to 159,983 lb·in (17,400 N·m) |
Motor Standards | NEMA, IEC, JIS, UL, CSA, CE |
